How Saxon Sealer SH1000 Can Improve Your Sealing Operation?
Tired of sluggish machines that barely keep up with your pace?
The Saxon sealer SH1000 is here to bring a dose of energy to your production line. Giving your bags tough, reliable, and super-efficient closures.
This continuous hot air bag sealer is trusted across multiple industries for its efficiency, durability, and ease of use. Saving your business from leakage, contamination, financial losses & production delays.
We provide durable and high-tech solutions at Allpack Packaging Technologies. That helps businesses streamline their packaging processes. Our range includes bag sealing machines, carton sealers, pallet wrappers, and strapping systems.
let’s guide you through everything about Saxon Sealer SH1000 & how it can benefit your business.

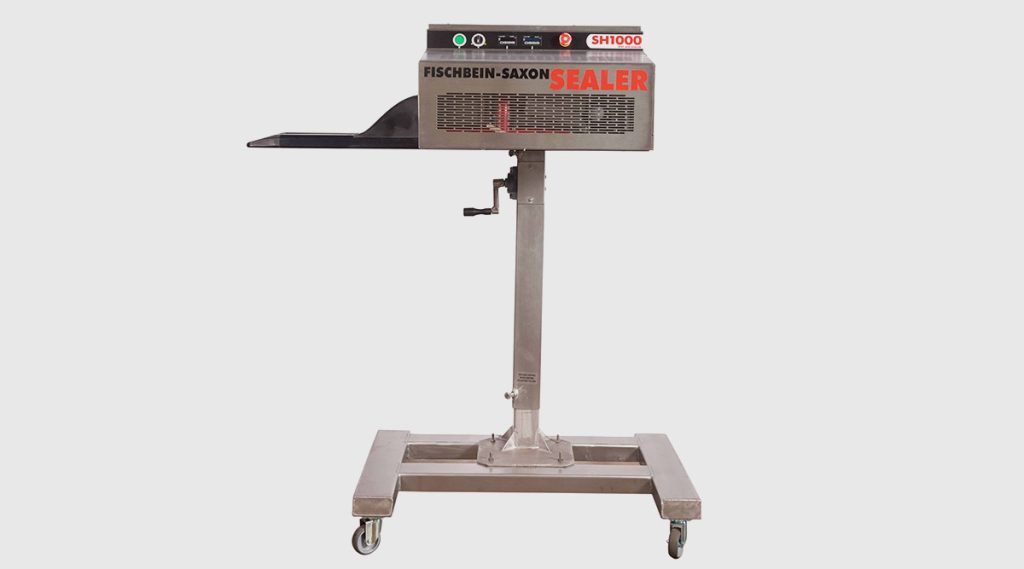

What is the Saxon Sealer SH1000?
The Saxon Sealer SH1000 is a continuous hot air bag sealer. Designed to provide fast, consistent, and strong seals for a variety of heat-sealable bags.
Unlike conventional band sealers with use of belts and pressure bars. The SH1000 relies on heated air to fuse the bag materials together and give a clean and secure seal. That stays efficient even under severe environmental conditions.
This advanced sealing technology makes it a preferred choice for a variety of industries. Like food, pharmaceuticals, chemicals, pet food, and agricultural products.
Why a Saxon Continuous Sealer is Must for You?
From pharmaceuticals to agriculture, all the industries choose Saxon Sealer SH1000 due to the following qualities.
Feature | Description |
Continuous Sealing | Eliminates the need for manual sealing, enhancing efficiency. |
No Bands Required | Reduces maintenance costs and wear-and-tear associated with sealing bands. |
Consistent Heat Application | Gives uniform seals without burning or melting the bag. |
Adjustable Sealing Height | Accommodates bags of different sizes for greater flexibility. |
Energy Efficient | Uses hot air technology, consuming less power than traditional sealing methods. |
Easy to Operate | Simple controls and automated features reduce training time for operators. |
This versatile sealer is ideal for businesses that require high-speed, efficient, and reliable bag sealing.
How Does the Saxon Sealer SH1000 Work?
The Saxon Sealer SH1000 operates on the principle of heat transfer by convection. Instead of using mechanical components to press and heat-seal the bag, this sealer uses a stream of hot air to create a secure seal.
Here’s how it works:
- Air Intake and Heating: The machine draws in ambient air and heats it using specially designed heating cartridges.
- Airflow Control: The heated air is then directed precisely onto the bag opening without overheating or damaging the material.
- Sealing Process: As the bag passes through the sealer. Hot air fuses the inner layers of the bag and creates a strong and durable bond.
- Cooling Mechanism: The sealed section is cooled down quickly to solidify the bond and maintain seal integrity.
This innovative technology eliminates the need for sealing bands. Reducing maintenance costs while providing consistent and high-quality seals.
Saxon Model SH-1000 Specifications
Understanding the technicalities of a machine is crucial for making a purchasing decision. Below are the detailed specifications of the Saxon Sealer SH1000:
Specification | Details |
Sealing Type | Continuous Hot Air Sealer |
Seal Width | 6 mm to 9 mm |
Bag Thickness | 1 to 3 mil |
Speed Range | 8.9 to 72.8 feet per minute |
Adjustable Height | Yes (motorized adjustment) |
Electrical Power | 115/230V, 50Hz/60Hz |
Machine Dimensions | L 23″ × D 28″ × H 65″ |
Weight | Approx. 275 lbs |
Cooling System | Optional External Cooler |
This compact yet powerful machine can be used for a variety of bag types. Handling every material without compromising seal quality or consistency.
Get More Details at Our Saxon SH1000 Technical Sheet
Performance Features of Saxon Band Sealer
Standard Features
The Saxon Band Sealer SH1000 comes equipped with several features to enhance its performance.
- Efficient hot air sealing technology.
- Adjustable conveyor height for different bag sizes.
- No need for expensive sealing bands.
- Corrosion-resistant components for tough industrial environments.
- Simple interface for quick setup, minimal training is required.
- Energy-saving design as compared to traditional sealing machines.
- Variable speed drive ranges (8 to 20, 17 to 41, 36 to 89 feet/min).
- Free-standing unit on an adjustable column with a mobile trolley.
- Adjustable pedestal (from 34″ to 53″).
- Quick-release fastenings on all components.
- Multiple drive pulley/sealing speeds.
- Tamper-proof cam for safety & isolation of power.
- Lowa-maintenance durable gearbox using food-grade lubricant.
- Adjust a variety of proprietary handles.
- Variety of pressure-wheel profiles.
- Ergonomic infeed moulding.
- Left to right or right to left both options.
- 6 mm to 9mm wide crimped seal.
- Strong stainless steel construction.
Optional Features
If you are looking for customisation, the Saxon SH1000 also offers optional add-ons. Such as:
- Bag-Top Trimmer: Removes excess material for a neater finish.
- Wash-Down Unit: For food and pharmaceutical industries where hygiene is required.
- Air-Wash Cleaning System: Keeps bags free from contaminants before sealing.
- External Cooling System: Provides immediate cooling for enhanced seal strength.
- Multiple Seal Profiles: If you need wider seals for lower strength requirements.
- Medical Validation Unit: To check the quality of operations.
- Orbit Ink Coder: Bar tag with sealing for easy identification of product.
- Multiple PID Controllers: For temperature & speed regulation.
- Conveyor: For easy dispatching of bags after being sealed.
These options by bag sealers from Saxon allow businesses to cater to their specific production needs more efficiently.
Applications of Saxon Hot Air Sealers
The Saxon Sealer SH1000 is widely used in various industries, including:
Industry | Applications |
Food Packaging | Milk powder, dry goods, spices, frozen foods, and snacks. |
Agriculture | Seeds, potatoes, corn, soybeans, sunflower, grains, and fertilizers. |
Minerals | Coal, concrete mixes, limestone, litter, and sand. |
Pharmaceuticals | Drugs, syringes, and other sterile tools. |
Chemical Industry | Powders, polymers, resins, granules, and industrial chemicals. |
Pet Food Packaging | Bird feed, animal feed, pet food, fish feed. |
Its versatility makes it an ideal choice for companies handling a range of products.
User Guide: How to Use the Saxon Sealer SH1000?
Operating the Saxon Model SH-1000 is straightforward:
1. Setup & Preparation
- Place the sealer on a stable surface mounted on a column
- You can also attach it to a conveyor system.
- Adjust the sealing height based on your bag size.
- Check the functionality of power source.
2. Operation
- Set the temperature and airflow based on the bag material.
- Feed the bag into the machine.
- Let the hot air system seal the bag automatically.
3. Post-Operation Maintenance
- Turn off the machine and allow it to cool.
- Regularly clean the air vents and heating elements.
- Keep checking for any signs of wear or damage and replace parts when necessary.
Benefits Offered by Saxon Continuous Sealer
The Saxon Sealer SH1000 is a top-tier bag-sealing solution that offers efficiency, durability, and cost-effectiveness.
Some of the top advantages include:
- Its consistent seal quality results in strong and reliable seals every time.
- Faster production speeds reduce downtime and improve efficiency.
- Lower maintenance costs with no need for expensive sealing bands.
- It is an eco-friendly solution that uses less power, reducing energy consumption.
- Ideal for multiple industries like food, medical, agriculture, and industrial.
